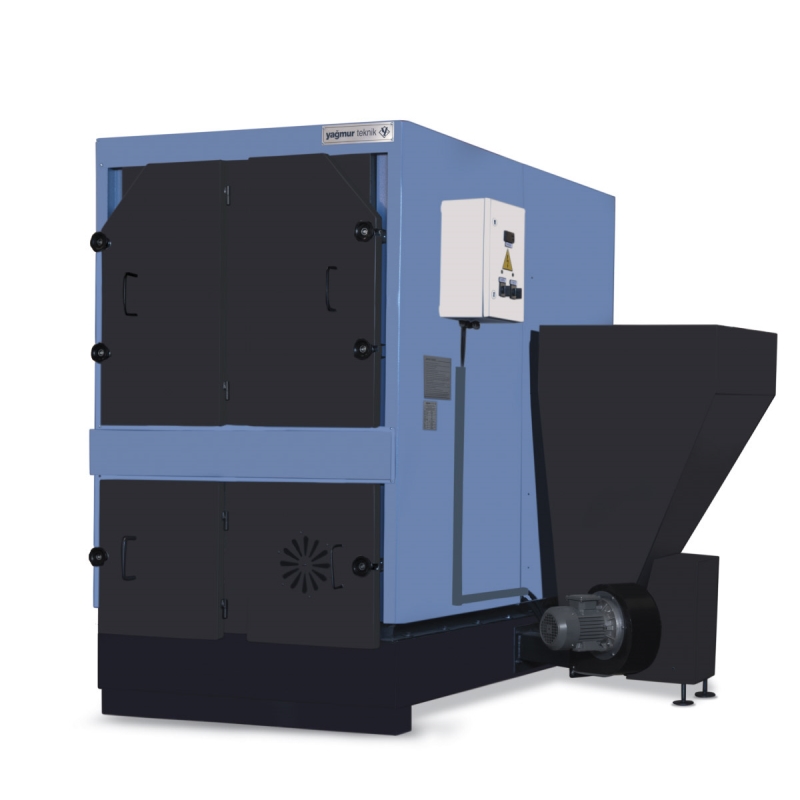

Central System Heating Boiler with Stoker - Gold

YTP Serisi

Central System Heating Boiler with Stoker - Gold

Central heating is a system that distributes the heating energy obtained from a center to buildings, workplaces and factories and provides heating of independent sections. Central heating system, central heating boiler with central stock, central heating boiler, central heating boiler, pellet fuel boiler, three-pass central heating boiler, 4-pass central heating boilers can choose the most suitable types of production and you can perform your heating economically.

  • These types of boilers are used with economical fuels with high calorific values like olive pomace, nut coal and nutshells.
  • Since fuel is fed from the bottom, energy savings reach up to 35% and amount of waste materials decreases 30%.
  • Combustion chamber of our high efficiency boiler is font casted. In this way corrosion due to heat is minimized.
  • With the digital control unit, all the components are operated automatically and electric and fuel savings are obtained.
  • It is easy to use, set up and maintain.
  • It operates trouble free when the fuel (nut coal olive pomace, and nutshells) proposed by the manufacturer is used provided that it is dry.
  • Any problems encountered are solved by the service network in all over the country. Fans used in boilers are set up with cycles and clacks.
  • The warranty coverage is cancelled if the product is used in closed expansion
  1. Boiler water inlet
  2. Boiler water outlet
  3. Cleaning Door
  4. Ash Discharge Door
  5. Funnel
  6. Expansion outlet
  7. Filling-Emptying
  8. Control Panel
  9. Bunker
  10. Reduction
  11. Fan
  12. Elevator (helix)
  13. Funnel
  14. Cleaning Door
  15. Smoke Chamber
Model YTP 150 YTP 180  YTP 200 YTP 250 YTP 300 YTP 350 YTP 400 YTP 450 YTP 500 YTP 600 YTP 700 YTP 800 YTP 1000 YTP 1250 YTP 1500
Heating Capacity Kcal/h 150.000 180.000  200.000 250.000 300.000 350.000 400.000 450.000 500.000 600.000 700.000 800.000 1.000.000  1.250.000 1.500.000
Capacity kw 174  209  232 290 348 406 465 523 581 697 813 930 1162  1452 1742
Max. Operational Temperature C 85
Test Pressure Bar 5
Max.Operational Pressure Bar 3
Feeding  380 V / 50 Hz
Engine Power Hp 1 1,5
Fuel MAX. Q20 mm Nut Coal and Olive Pomace
Weight Kg 1603 1750  1870 1990 2240 2650 2850 3100 3350 4592 5160 5350 5690  5950 6650
D (Funnel) mm 400 500 600
H (Height) mm 1720 1800 1900 2100 2200 2250 2350 2450 2650 2750
W (Width) mm 1850 2200  2600 2680 3300  3500
L(Boiler length) mm 1150 1260 1370 1560
L1 (width with stoker) mm 1830 1940 2090 2200 2360
Boiler inlet-outlet 80 100 125 150
Expansion inlet-outlet 1 ¼'" 1 ½' 2"
Boiler filling-emptying 1" 1 ¼'          1½" 2"
* The values might change in parallel with the product development.
